WL130

WL130

The FlipScreen WL130 transforms a loader into a complete mobile screening and material-handling system. It is an efficient choice for civil contractors, quarry operators, landscape suppliers, recyclers and earthmoving businesses that want to process material without continually feeding a separate plant.

The WL130 can screen topsoil, clay, sand, gravel, aggregate, road base, crushed concrete, compost and excavation spoil. The loader collects the material, screens it and immediately relocates or loads the finished product, creating a simple workflow that can move between stockpiles and work areas.

Scoop, screen and load—with one carrier.

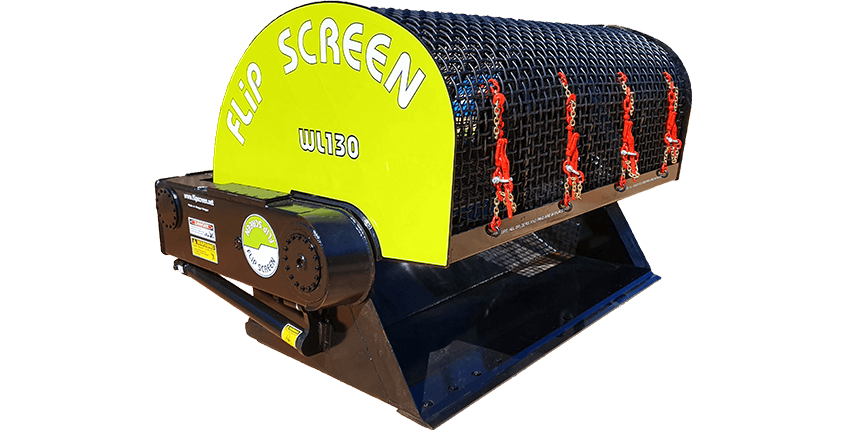

FlipScreen WL130 Screening bucket for Telehandler machines

11 T - 16 T

Product videos

GET A QUOTE

Technical Specifications

Minimum static tipping load

8,000 kg / 17,636 lb (sheet basis: 1.6 t/m³)

Bucket opening

2140 x 656 mm / 84.25 x 26 in

Scoop size

1.30 m³ / 1.70 yd³

Total volume

3.90 m³ / 5.10 yd³

Weight

1,707 kg / 3,763 lb

Dimensions (L × W × H)

205 cm / 81 in

247 cm / 97 in

160 cm / 63 in

Hydraulic flow

147 L/min / 32.3 US gal/min

Hydraulic pressure

170 bar / 2467 psi

Inlet & outlet thread

1-3/16"-12 ORFS Male

Case drain thread

1/4" BSPP Female*

Screen area

5.7 m² / 61.4 ft²

Carrier size

11-16 t / 12.1-17.6 US tons
